COMPTON ELECTROSTATIC ORGANS

COMPTON AT WEST HAY

Holophane Lighting Unit

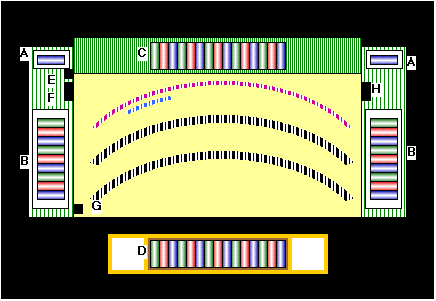

Console lighting arrangements

KEY

A - Side back lighting trays

B - Side bottom lighting trays

C - Top lighting tray

D - Bench lighting tray

E - Connection box for top lighting tray

F - Connection box for both left side trays

G - Connection box for bench lighting tray

H - Connection box for both right side trays



Console Tab
Relay
(counting left to right)
Circuit
Contactors on Holophane unit
Auto
1
Auto
(M + B) + (R + G)
Red
2
Red
R
Blue
3
Blue
B
Green
4
Green
G
Orange
5
Red + Green 1
R + G1
Sky Blue
6
Blue + Green 1
B + G1
Turquoise
7
Blue + Green
B + G
Mauve
8
Blue + Red 1
B + R1

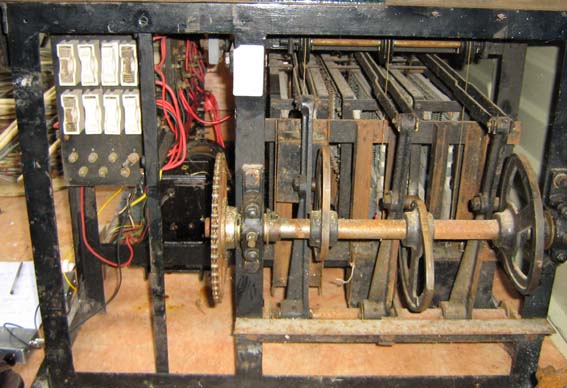

The Holophane unit - side view

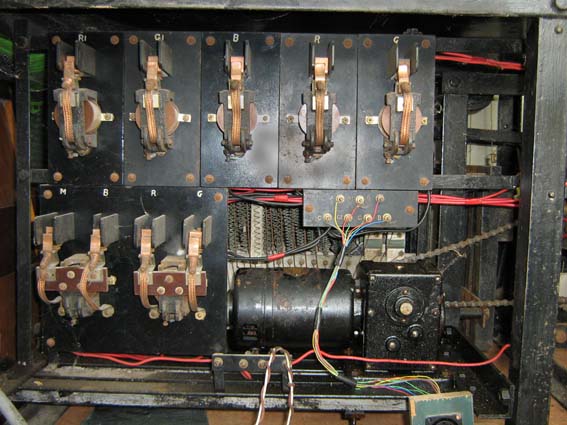

The Holophane Unit - end view





Circuit diagram of Holophane unit
